Jetpack Compose 101: The Basics

Jetpack Compose is the latest declarative UI development toolkit announced by Android. With compose, many screens can be developed safer and faster with lesser code. Here are the basics of Jetpack Compose:

Android’s UI Development Journey

Let’s start our article by looking at how creating layouts in Android has evolved over time:

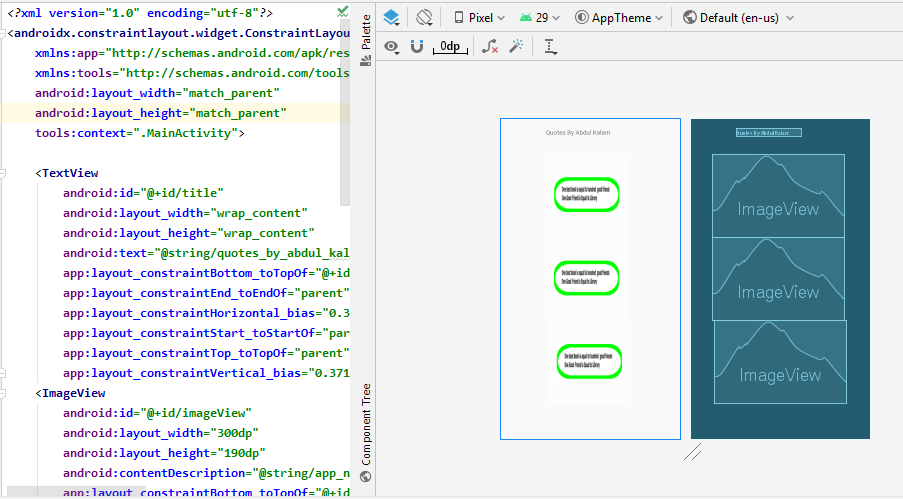

1- XML

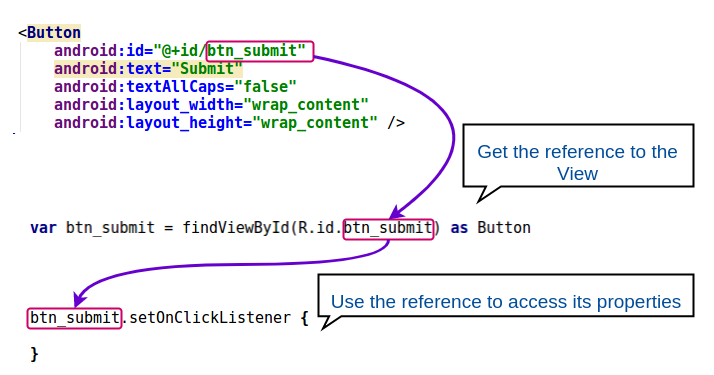

In the beginning of the Android development, developers where using xml files for ui development and had to use “findViewByID” for connecting ui items with application logic.(Button click listeners, setText for TextView and so on.)

But it wasn’t enough. Developers came up with solutions to improve UI development process:

2- Butter Knife:

While developing UI with Butter Knife, annotate fields with `@BindView` and a view ID for Butter Knife to find and automatically cast the corresponding view in your layout:

class ExampleActivity extends Activity {
  @BindView(R.id.title) TextView title;
  @BindView(R.id.subtitle) TextView subtitle;
  @BindView(R.id.footer) TextView footer;

  @Override public void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.simple_activity);
    ButterKnife.bind(this);
    // TODO Use fields...
  }
}

3- Kotlin Synthetic

With Kotlin Synhetic, we can directly access to xml item by it’s id:

class ExampleActivity extends Activity {

  @Override public void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.simple_activity);
    itemText.text = "Hello Android!"
  }
}

4- Data Binding

With Data Binding you can write less boilerplate and repetitive code. It moves UI operations out of the activities and fragments to the XML layout. You assign the attribute to a variable, in the XML layout:

<layout xmlns:android="http://schemas.android.com/apk/res/android"
        xmlns:app="http://schemas.android.com/apk/res-auto">
    <data>
        <variable
            name="viewmodel"
            type="com.myapp.data.ViewModel" />
    </data>
    <LinearLayout
      <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@{viewmodel.userName}" />
    </LinearLayout>
</layout>

5- View Binding

View Binding is the last feature that made for ui development with xml. Once view binding is enabled in a module, it generates a *binding class* for each XML layout file present in that module. With these binding classes we get references to all views that are in xml:

private lateinit var binding: ResultProfileBinding

override fun onCreate(savedInstanceState: Bundle?) {
    super.onCreate(savedInstanceState)
    binding = ResultProfileBinding.inflate(layoutInflater)
    val view = binding.root
    setContentView(view)
    binding.itemText.text = "Hello Android!"
}

Here is a comparison table:

Finally, to make development even faster and easier Jetpack Compose announced.

Note:
We are not suggesting that compose is better than xml in every aspect. For example when it comes to onWindowFocusChanged compose x2 times slower than xml.

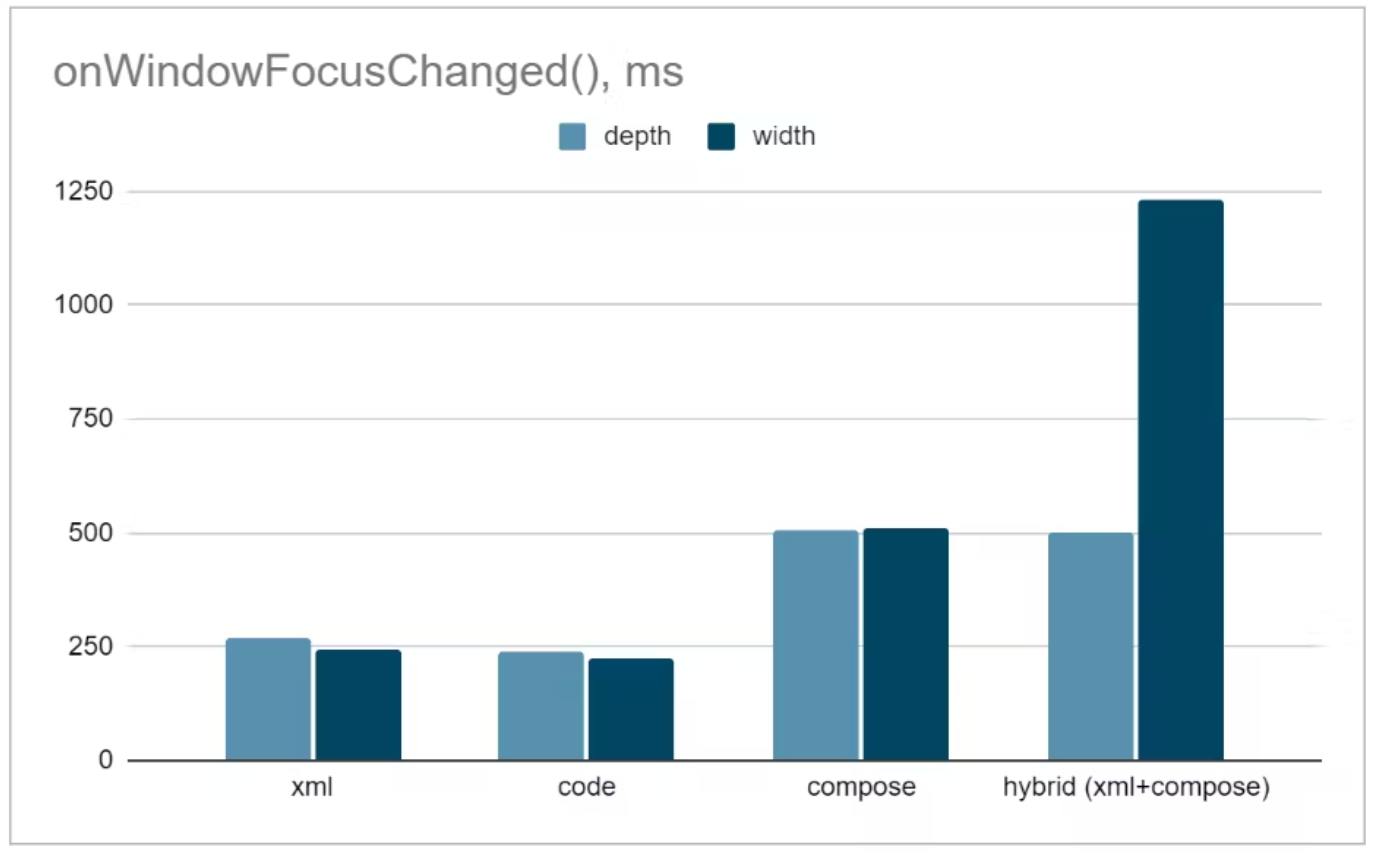

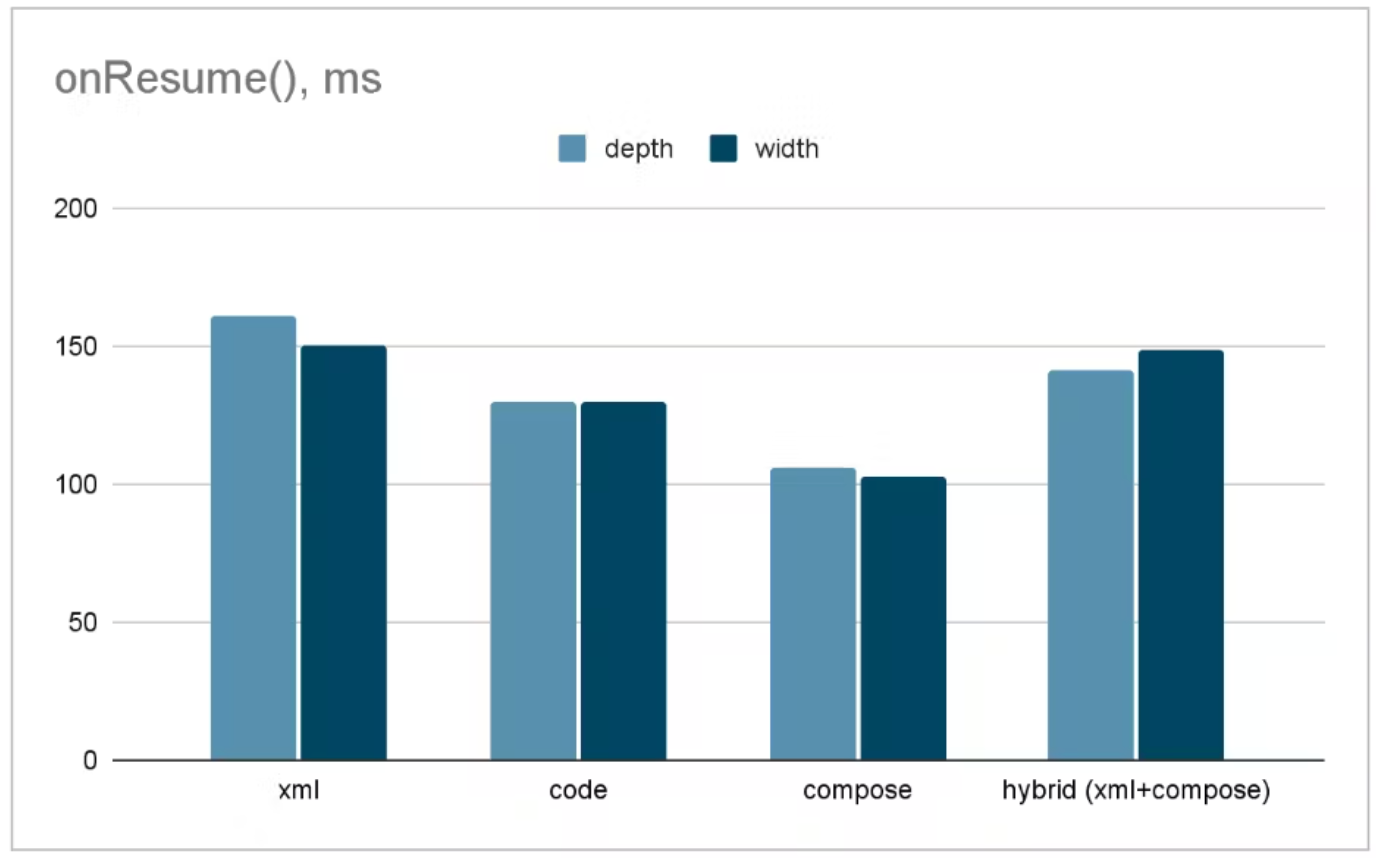

Test results on xml vs compose rendering speed:



What is Jetpack Compose

Android introduced Jetpack Compose, a new declarative UI toolkit for building native user interfaces. It simplifies and accelerates UI development on Android since it requires less code, has great debugging tools and uses Kotlin APIs.

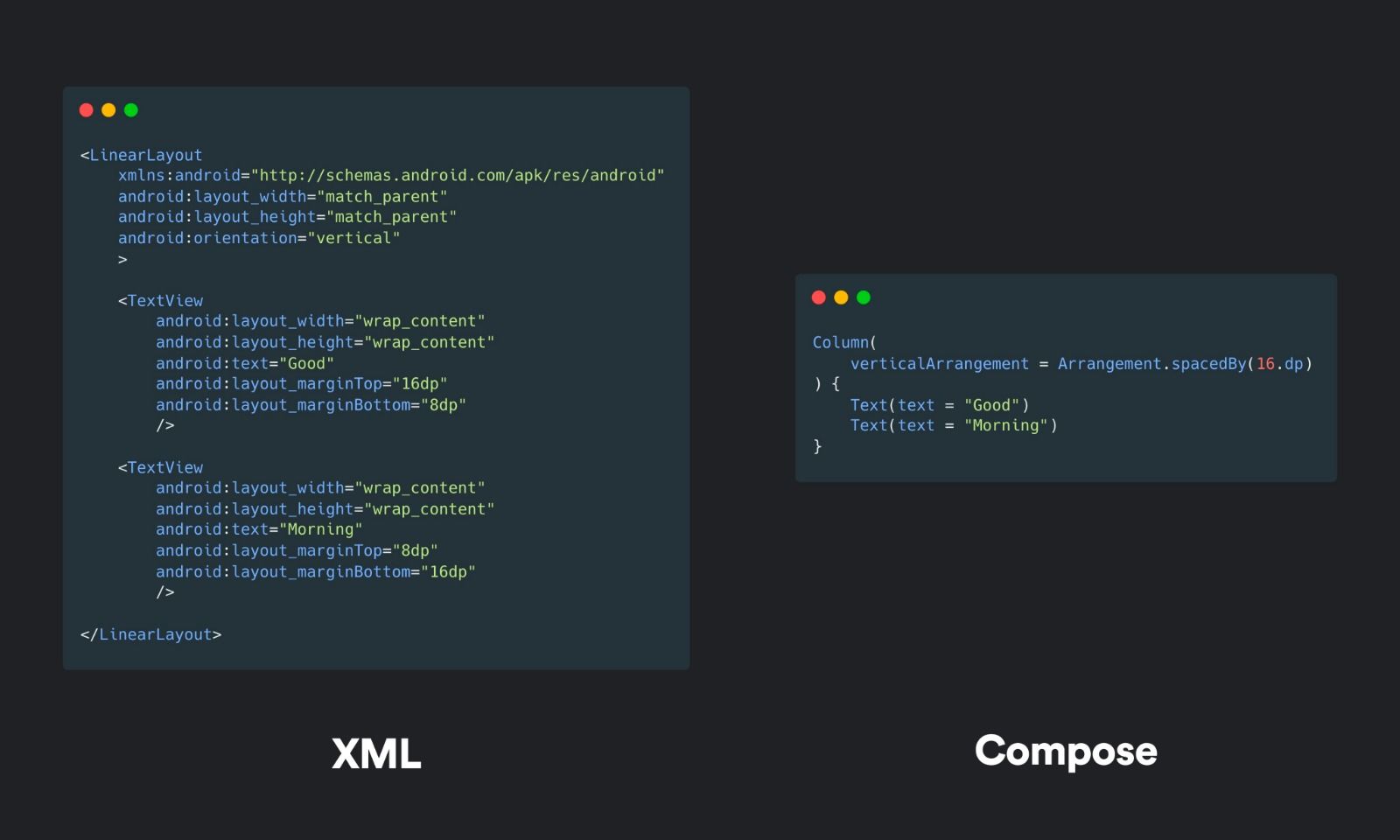

An XML interface can be rewritten with Compose with fewer lines of code:

If we managed to get your attention up to this point, let’s learn the basics of Compose.

Compose Basics

1- Composable Functions

With compose, we define our interfaces as functions. We’ll look at how our beloved “Hello Android” example is implemented with Compose.

First, we write our composable function(this step is not mandatory but getting a hang of it will make your development much easier):

@Composable // Annotation to say: "This is a composable function"
fun ShowText(name: String) {
    Text(text = "Hello $name!") //Composable Text function
}

Now let’s call this function in our MainActivity:

class MainActivity : ComponentActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        //Since Compose is not derived from Android views,
        //Instead of setContentView we use setContent
        setContent {
            ShowText("Android")
            //As a Different Approach:
            //Text(text = "Hello Android!")
        }
    }
}

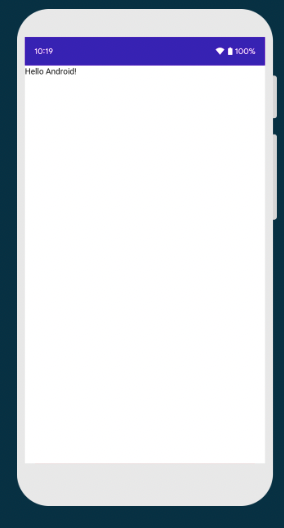

And that’s it! Wedidn’t had to create any xml file, didn’t use any binding and printed “Hello Android” on the emulator with less than 10 lines of code.

2- Layouts

Layouts are one of the essential components of the UI development.

Let’s take a look at how Compose lays out UI elements:

Most basic compose layout components are Column, Row and Box. But what are these?

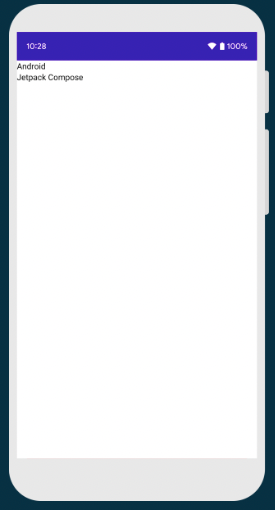

If we put two Text in a column:

@Composable
fun TwoText() {
    Column {
        Text(text = "Android")
        Text(text = "Jetpack Compose")
    }
}

You might say: “It is easy to show two texts 😄 . Show me how RecyclerView works in Compose.” Here’s how:

3- RecyclerView in Compose

Forget adapters, this is how you define a recyclerview in Compose:

@Composable
fun ComposeRecyclerView(messages: List<String>) {
    LazyColumn {
        items(messages) { message ->
            Text(message)
        }
    }
}

LazyColumn will take care of everything for us 😁

4- Theming in Compose

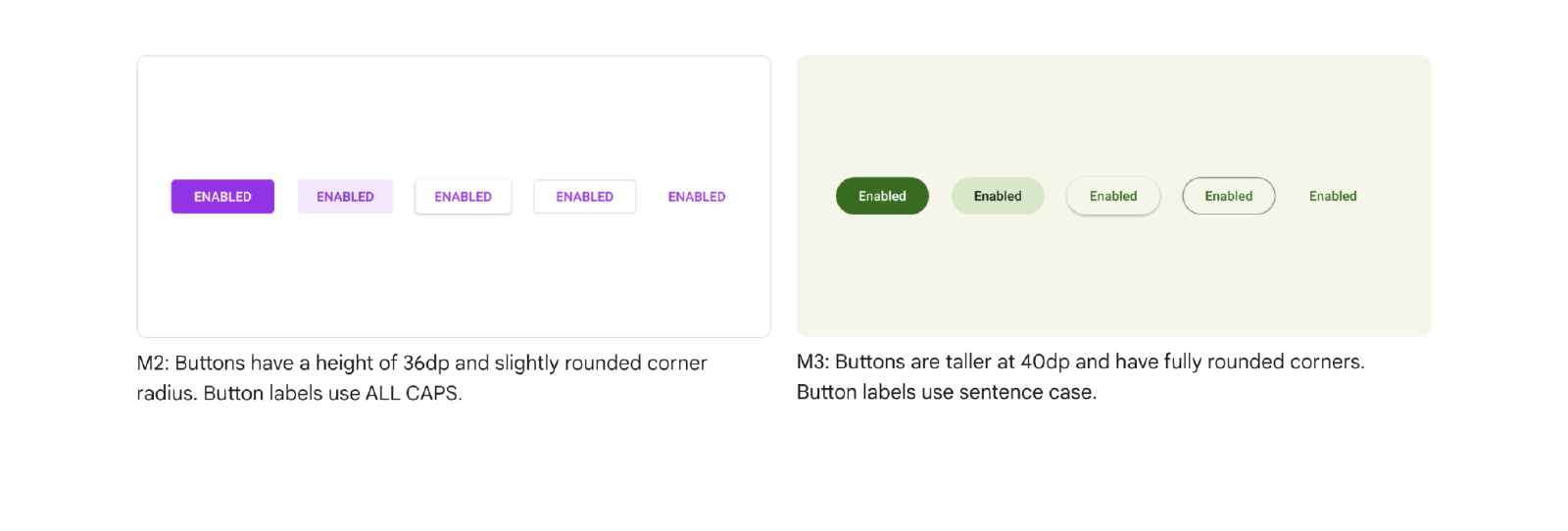

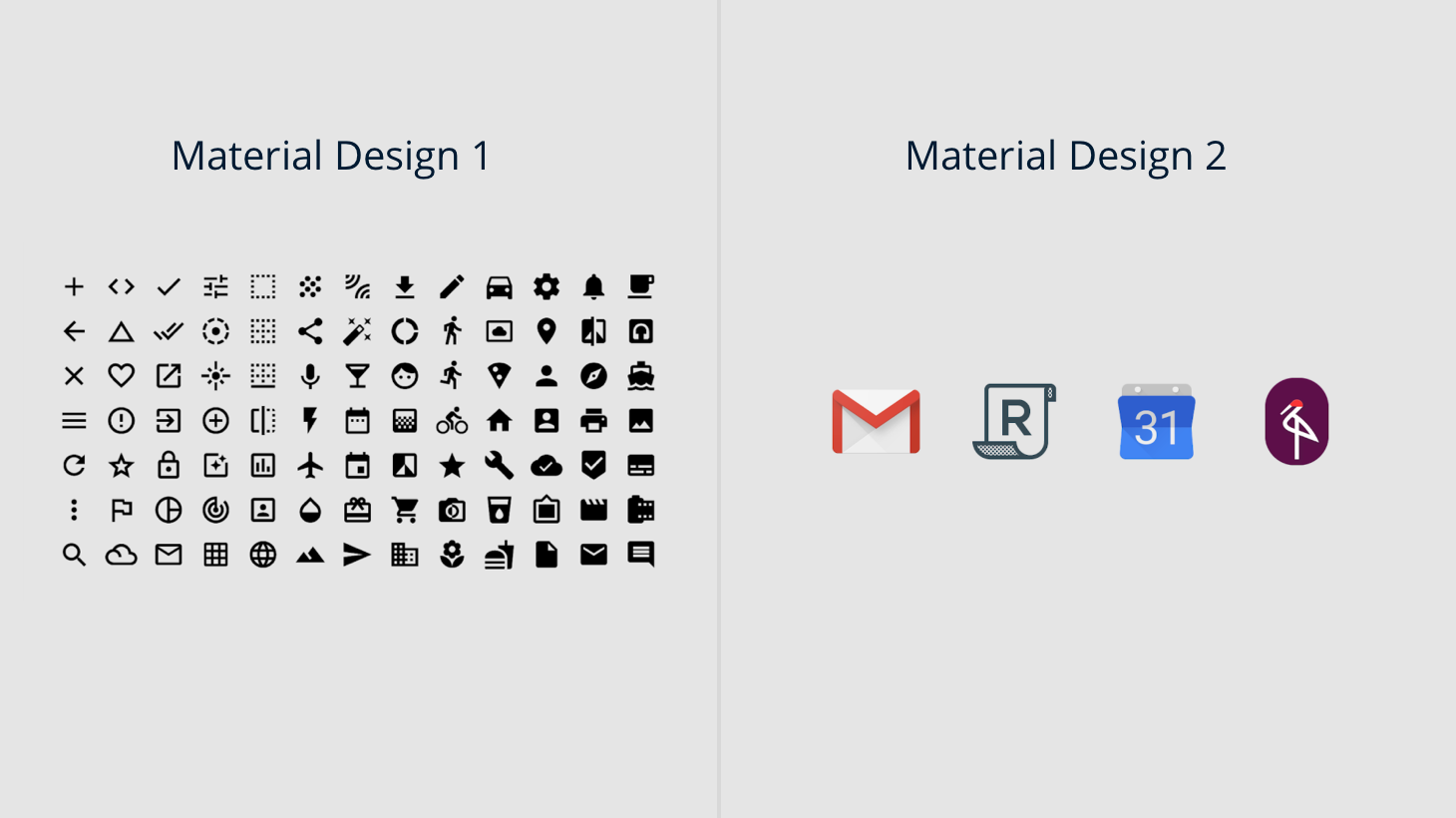

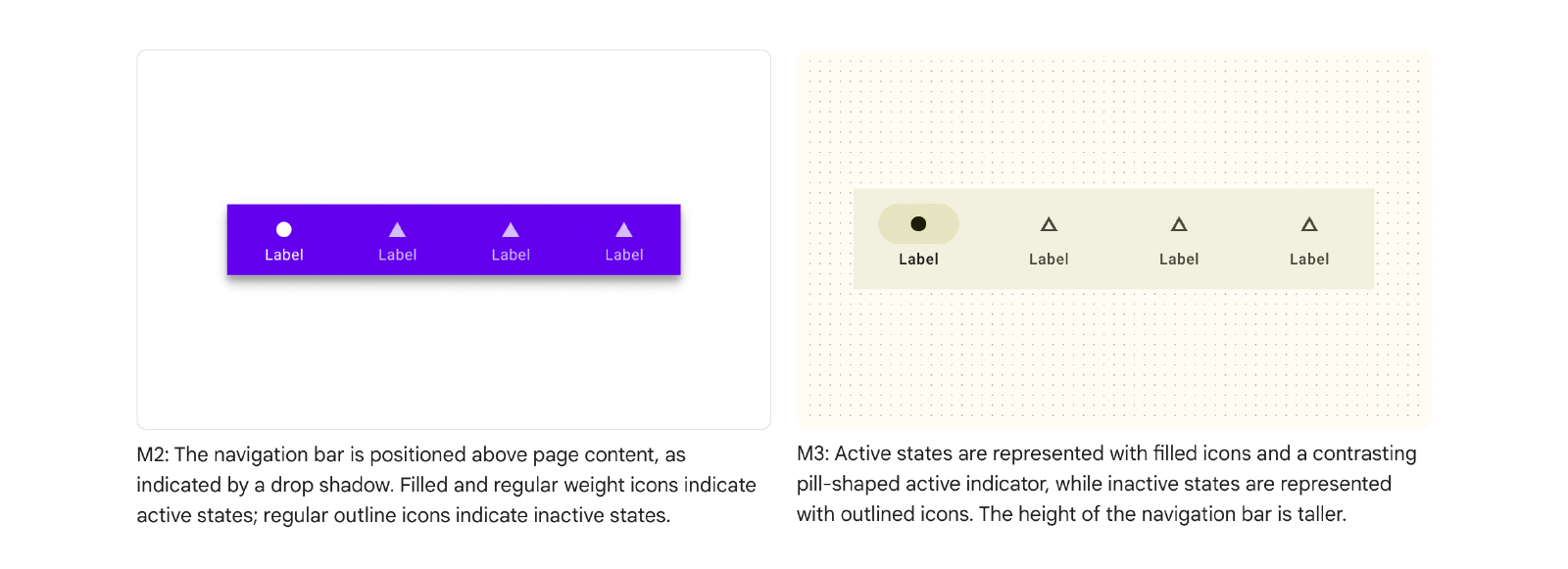

Material Design is announced as a design language by Google in 2014. We won’t get into details of it in this article. However, we would like to show some of the changes between the Material Design versions:

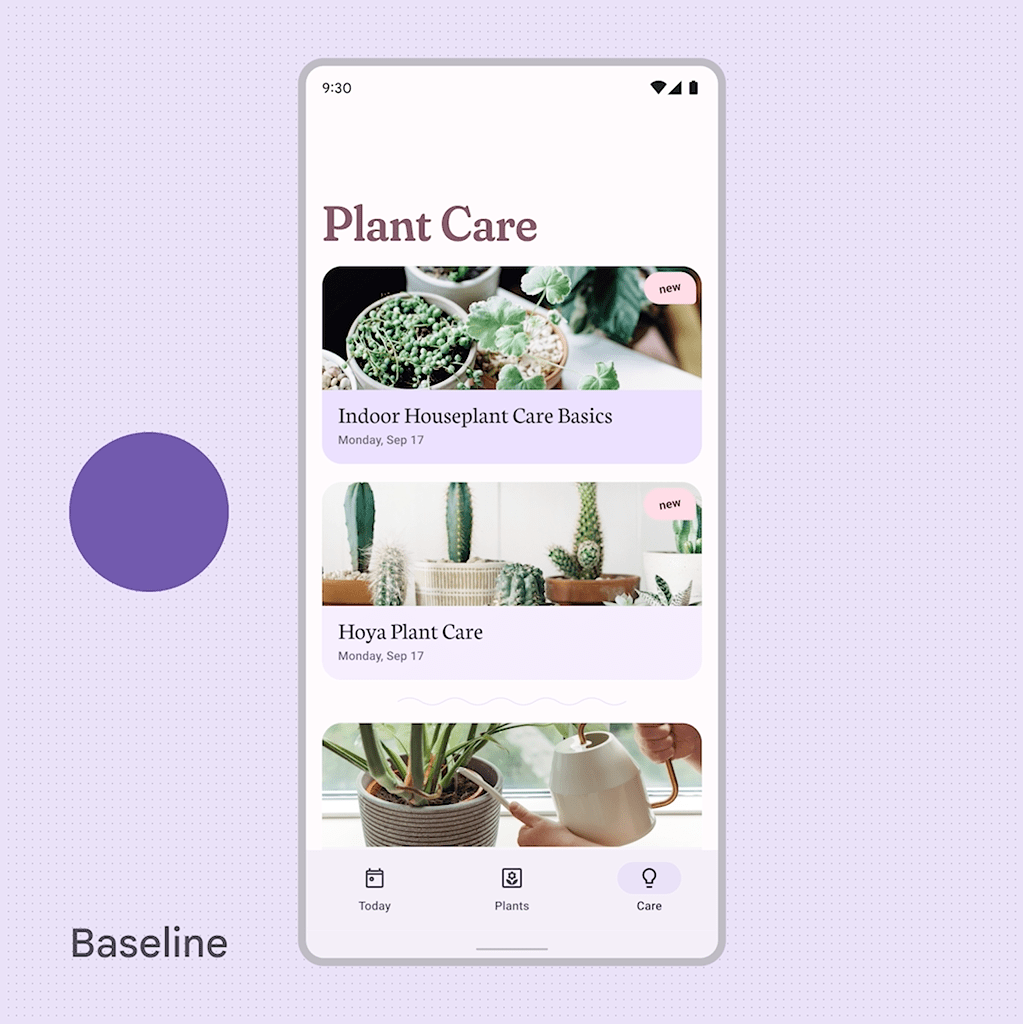

With Material Design 3, an App’s theme can change dynamically according to the wallpaper colors or user’s requests:

Cool isn’t it? 😄 Since Compose updates UI automatically, supporting this feature is much easier than supporting on xml structure.

Conclusion

In this article, we learned what is jetpack compose, why it is being seen as the future of native android UI development and its basics. If you want to dive deeper in Compose world, you can check out our upcoming Compose article series and Compose documentation:
the compose documentation page
.

What’s Next?

• There are pathways for compose that can help you practice development.
• Sample apps if you want to directly dive into code.
• Roadmap for compose to learn upcoming features.
• Compose testimonials from app developers.
• Compose news and videos to keep up with compose’s world.
